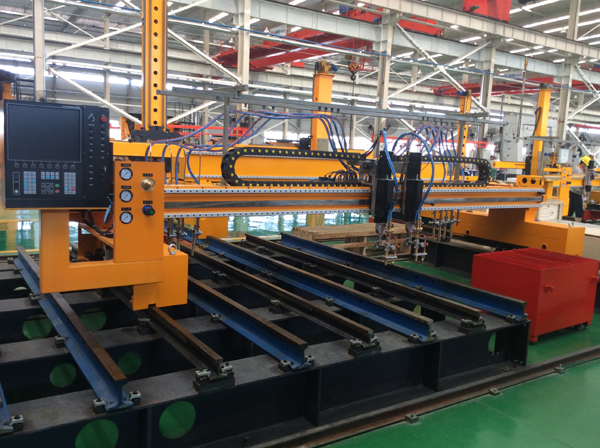

TDC I basic CNC cutting machine

Feature code：

The longitude rail is 23kg class. Latitude track is linear rail.
AC servo driving, transmission precision planetary gear reducer.
Machine boday is designed to be box structure, longitudinaldual drive.
Work with air/oxygen plasma cutting power source.
Equipped with gas control panel and gas distribution system. Function of automatic ignition, back fire etc.

Optional gauge(mm)	4000	4500	5000	5500
Effective cutting width (mm)	3300	3800	4300	4800
Overall width of machine(mm)	4700	5200	5700	6200
Effective cutting length(mm)	(Rail length-2500) / Can be customized
Optional CNC system	Time I or EDGE Connect,Hypertherm EDGE Connect
Optional plasma power source	TDL1200； Powermax105、Powermax125、MAXPro200A
Optional number of torch	According to customer's requirements
Lifting stroke of torch(mm)	200
Un-load speed(mm/min)	10000
Cutting speed(mm/min)	Flame：50～750, Plasma：as per plasma power source
Cutting thickness(mm)	Flame：6～160, Plasma：as per plasma power source
Fuel gas	Ethyne / Propane
Foundation	I-beam / cement (Standard configuration is I-beam base)
Longitudinal chain	Upper chain or down chain (Standard configuration is down chain)

Note: The above parameters are for TIME standard product configurations, and can be customized according to the customer’s requirements.
